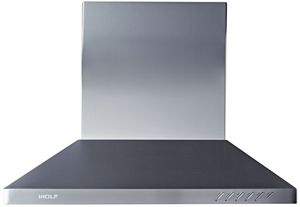

Wolf® 30" Stainless Steel Chimney Wall Ventilation


Model #:

CTWH30

Model #: CTWH30
3059
Wolf
$99,999.00

At a Glance

Product Dimensions 48.5"h x 30"w x 21"d

Wolf® 30" Chimney Wall Ventilation with optional internal/external blowers and stainless steel finishRead More

Call for Best Price

What We Offer

Protect Your Purchase

View Options

None Selected
Available In Stock 1

Get to know this product.

Product Overview

Product Overview

  • Stainless steel finish
  • Internal, in-line and remote blower options
  • Front-mounted controls with LED indicator
  • Heavy-duty stainless steel seamless construction
  • Three-speed blower control
  • Filter clean timer lets you know when the filter needs cleaning
  • Delay-off feature automatically turns unit off
  • Sealed halogen lighting with three settings
  • Stainless steel filter cover with dishwasher-safe aluminum mesh filter
  • Heat sentry feature automatically turns unit on when heat is sensed and automatically adjusts blower speed
  • Transition with backdraft damper included
  • Can be vented through ceiling
  • Fits 8' to 9' ceilings
Useful Documents
Specifications

General Specs

Width (in.)30
Height (in.)48.5
Duct Size (in.)8
Depth (in.)21
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Appliance Fit Width (in.)30
Voltage110/120
Amp15
Frequency60

Construction

Exhaust:Ducted
Chimney:Adjustable
Ductwork Type:Vertical

Dimensions

Shipping Weight:85
Depth, Chimney :12
Min Chimney Height:30.5
Max Height Above Cooktop:30
Min Height Above Cooktop:24

Display

Controls:Mechanical

General Features

Filter Type:2 Washable Grease Filters
Pollutant Removal:Externally Vented

Other

Number of Lights:2
Settings:3
Air Mover Type(s):Blower Required
Air Mover(s) Speed:3

Styling

Design:Chimney
